Adjustable Applicator For Evaluate The Slight Difference Of The Film Thickness Accurately

  • Adjustable Applicator For Evaluate The Slight Difference Of The Film Thickness Accurately
  • Adjustable Applicator For Evaluate The Slight Difference Of The Film Thickness Accurately
  • Adjustable Applicator For Evaluate The Slight Difference Of The Film Thickness Accurately
  • Adjustable Applicator For Evaluate The Slight Difference Of The Film Thickness Accurately
محل منبع پکن
نام تجاری HUATEC
گواهی ISO, CE, GOST
شماره مدل HT1806
مقدار حداقل تعداد سفارش 1PCS
جزئیات بسته بندی بسته صادرات استاندارد
زمان تحویل 1-4 روز
شرایط پرداخت T/T، Paypal، وسترین یونیون
قابلیت ارائه 500 عدد در ماه

برای نمونه ها و کوپن های رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

وی چت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.

x
جزئیات محصول
6 عرض فیلم موجود است 50/150/250/300 میلی متر دقت، درستی ± 2μm
محدوده ضخامت فیلم 0-3500 میکرومتر
برجسته کردن

oating thickness tester,digital thickness gauge

,

digital thickness gauge
پیام بگذارید
توضیحات محصول

Product Introduction:

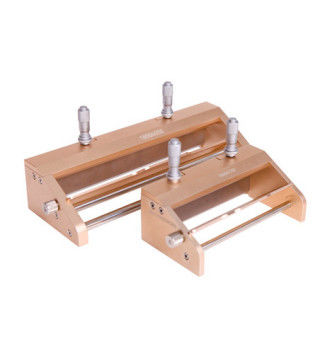

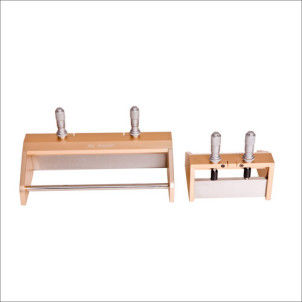

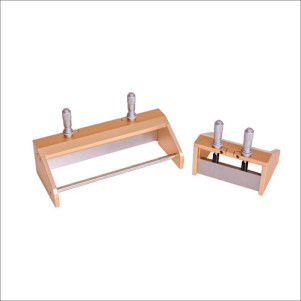

Adjustable Applicator is applied to evaluate the slight difference of the film thickness accurately. It can control the film thickness by adjusting the two differentiators and scraper. And the gap is the final thickness.

Adjustable Applicator For Evaluate The Slight Difference Of The Film Thickness Accurately 0

Adjustable Applicator For Evaluate The Slight Difference Of The Film Thickness Accurately 1

Adjustable Applicator For Evaluate The Slight Difference Of The Film Thickness Accurately 2

Adjustable Applicator For Evaluate The Slight Difference Of The Film Thickness Accurately 3

Introduction:

Adjustable Applicator is applied to evaluate the slight difference of the film thickness accurately. It can control the film thickness by adjusting the two differentiators and scraper. And the gap is the final thickness.

Technical Specification:

◆Stainless steel-wear resistance
◆6 film Widths are available:
50/150/250/300 mm
◆Precision: ±2μm
◆Film thickness range: 0-3500μm
◆In 10 μm increment

Order Information:

1806/50 Adjustable Applicator 50 mm Width
1806/150 Adjustable Applicator 150 mm Width
1806/250 Adjustable Applicator 250 mm Width
1806/300 Adjustable Applicator 300 mm Width

Other width and gap size are available upon request.



In order to facilitate the rapid application of wet film and quick cleaning after use, developed two new models of adjustable film applicator.
1806/A: Diversion baffle make the operation more convenient.
Smart magnetical design for quick cleaning after use.

Order Information:

1806A/50 50mm Width
1806A/100 100mm Width
1806A/150 150mm Width
1806A/200 200mm Width
1806A/250 250mm Width
1806A/300 300mm Width

Other width and gap size are available upon request.



1806/B: Smart magnetical design for quick cleaning after use.

1806B/50 50mm Width
1806B/100 100mm Width
1806B/150 150mm Width
1806B/200 200mm Width
1806B/250 250mm Width
1806B/300 300mm Width

Other width and gap size are available upon request.
